How It Works

From Radio Waves to Intelligence

Three stages turn raw LoRa signals into actionable mesh data.

Capture

8 channels with 16 demodulators receive SF7 through SF12 simultaneously. Higher sensitivity and dynamic range than any standard node.

Decode

AES-CTR decryption, protobuf parsing, and 14 portnum decoders extract positions, messages, telemetry, routing, and node identities from both Meshtastic and MeshCore.

Map & Analyze

Nodes plotted on a live map with signal strength, topology links, and traffic patterns. Local dashboard on the device, cloud aggregation across all Meshpoints.

Capabilities

More Than a Packet Sniffer

Every feature built to give you complete visibility into your mesh network.

Multi-SF Reception

SF7 through SF12 simultaneously. Hear LongFast, MediumFast, ShortFast, and everything in between without switching presets.

Dual Protocol

Meshtastic and MeshCore decoded natively. Both protocols captured, decrypted, and stored from a single device.

6 Regions

US, EU 868, Australia/NZ, India, Korea, and Singapore. Select your region in the setup wizard and the concentrator configures itself.

MQTT Gateway

Dual-protocol publishing: Meshtastic as native protobuf ServiceEnvelopes, MeshCore as JSON. Compatible with community maps, Home Assistant auto-discovery, and custom pipelines.

Local Stats Dashboard

12 live charts on the device itself. Protocol breakdown, RSSI distribution, traffic timeline, device roles, and relay analytics.

Native Messaging

Send and receive Meshtastic messages through the concentrator's built-in TX. MeshCore messaging via companion. Full chat UI with conversations, channels, and contacts.

Cloud Node Catalog

66,000+ nodes indexed across all Meshpoints with search, filtering by protocol and device, and sortable columns. Updated hourly.

See It In Action

Two Dashboards, Full Visibility

A local dashboard on each Meshpoint for real-time device stats, plus a cloud dashboard that aggregates everything.

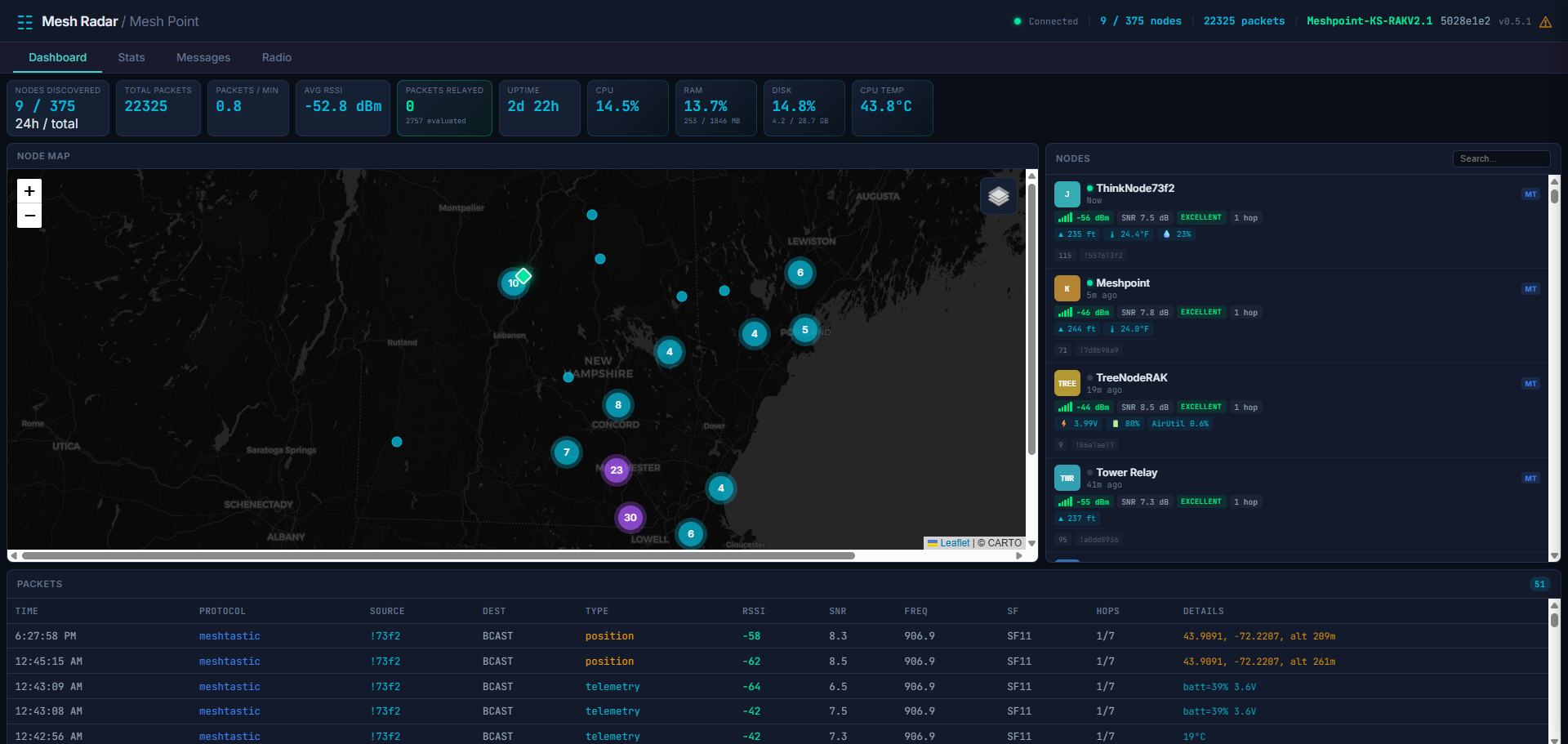

192.168.0.141

Local Dashboard

Live map, packet feed, signal charts, relay stats

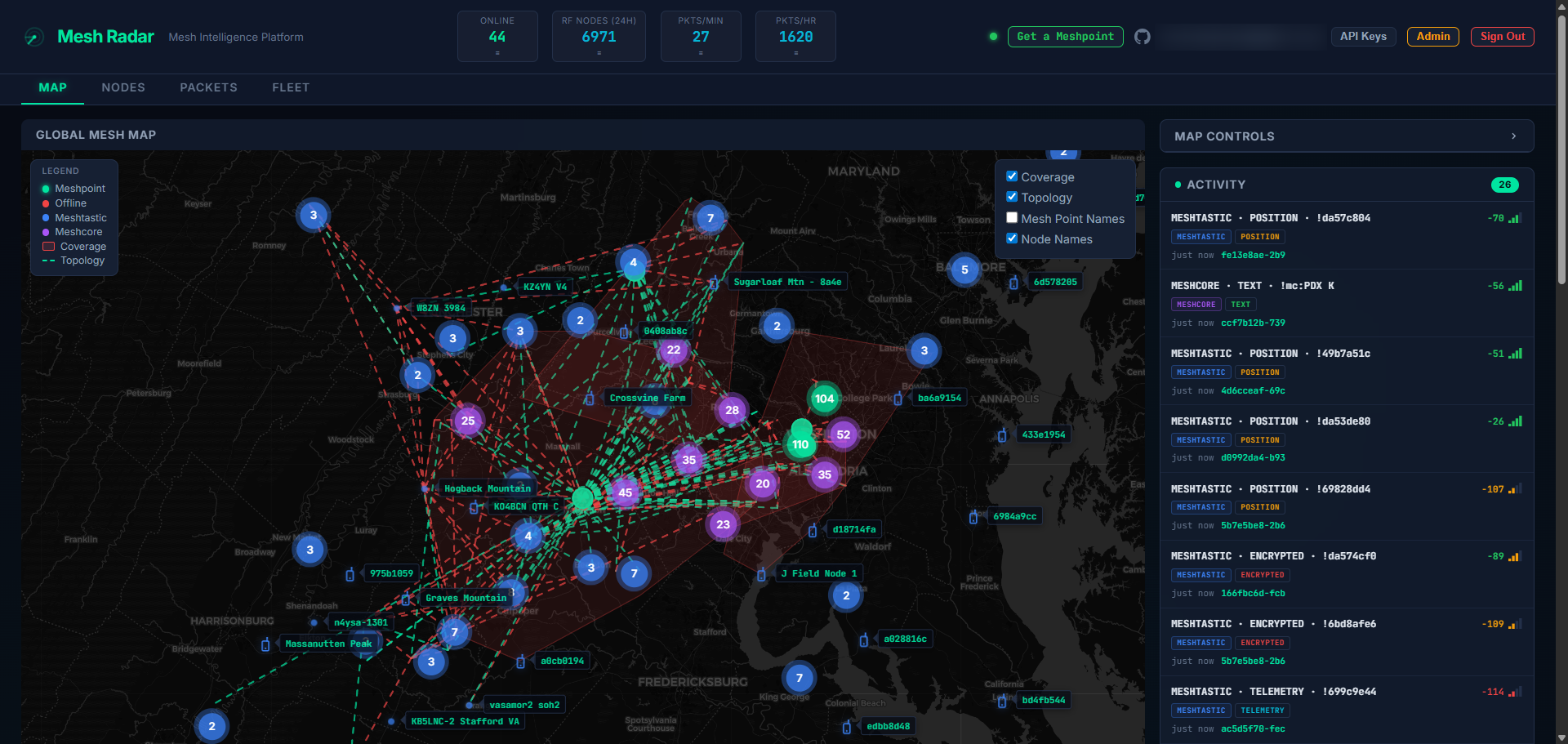

meshradar.io

Cloud Dashboard

Fleet map, node catalog, packet feed, analytics

Why a Concentrator?

Standard Node vs Meshpoint

A regular Meshtastic node sees its own traffic on one channel. A Meshpoint sees everything.

	Standard Node	Meshpoint
RX Channels	1	8
Demodulators	1	16 (multi-SF)
Protocols	Meshtastic only	Meshtastic + MeshCore
Regions	1 at a time	6 supported
Role	Participant	Observer + messenger
Packet visibility	Own channel	All traffic in range
Messaging	Built-in	Native TX + chat UI
MQTT	Built-in (limited)	Full gateway, protobuf + JSON
Storage	None	SQLite with retention
Analytics	None	12 live charts + cloud aggregation
Dashboard	None	Local + cloud web UI

Hardware

Everything You Need for ~$60

Repurposed Helium miners make the easiest path. Pi 4 + SX1302 concentrator in a weatherproof enclosure, ready to go.

Recommended

RAK Hotspot V2

~$40–70 on eBay

Pi 4, RAK2287 (SX1302), Pi HAT, metal case, antenna, power supply. Remove 4 screws, flash an SD card, done.

Find on eBay

SenseCap M1

~$30–60 on eBay

Pi 4, SX1303 concentrator, carrier board, metal case, antenna. Auto-detected during setup. USB-C power to carrier board.

Find on eBay

Build Your Own

~$85 in parts

Pi 4 + RAK2287 + Pi HAT + antenna + SD card. Full flexibility, same software. See the GitHub repo for the BOM.

View Guide

Community

Open Source, Growing Fast

Built in the open. Join the operators running Meshpoints around the world.

--

GitHub Stars

Full source on GitHub. Clone, flash, and you're capturing packets.

Active

Discord Community

Get help, share your setup, and follow development.

100%

Open Source

No subscriptions, no cloud lock-in. Run it fully local or connect to Meshradar for fleet aggregation.

Ready to See the Mesh?

Explore the live map with 66,000+ nodes, or set up your own Meshpoint and start capturing.
